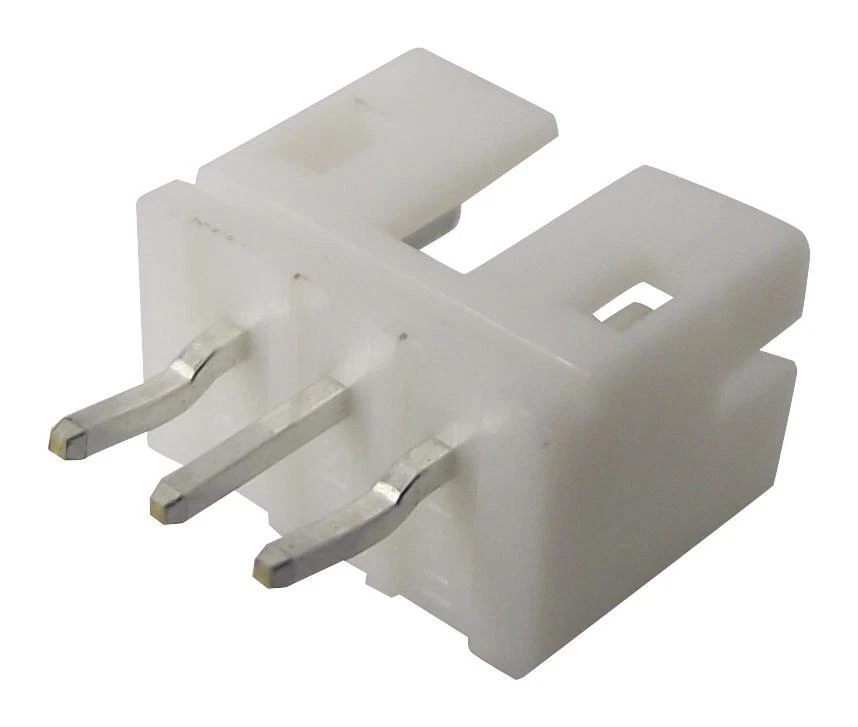

3 Pin Jst-xh Male Straight Connector 2.54mm Pitch

JST-XH 3 Pin Connector – Polarized for Power and Sensor Connections

The JST-XH 3 Pin Connector is a reliable and polarized connector ideal for power connections and general sensor connections in your PCB or perf board projects. This connector ensures that users connect peripherals correctly, preventing incorrect or reversed connections. The connector features a compatible male header that only mates with the connector in one orientation, offering a secure and safe connection.

✅ Key Features:

• Polarized Design: Ensures the connector can only be inserted in one orientation to prevent incorrect connections.

• 3 Pin Connector Plug: Ideal for battery, motor, and general peripheral connections, commonly used in small electric planes.

• Current Rating: 3A, suitable for moderate power applications.

• Voltage Rating: 250V, ensuring safe operation for various electrical systems.

• Mounting Type: Through-hole for secure soldering onto PCBs.

• Pitch: 2.54mm, compatible with standard prototype boards.

• Operating Temperature: -25°C ~ 85°C, suitable for a wide range of environments.

📐 Specifications:

• Connector Type: JST-XH 3 Pin (Male Pin)

• Current Rating: 3A

• Voltage Rating: 250V

• Contact Type: Male Pin

• Mounting Type: Through Hole

• Number of Positions: 3

• Pitch: 2.54mm

• Operating Temperature Range: -25°C ~ 85°C

• Dimensions: 3 x 3 x 3 cm

• Weight: 0.005 kg

🌍 Order Now:

Order the JST-XH 3 Pin Connector for your next project! Ideal for both hobbyists and professionals working on PCB or perf board designs.
