J5019 Hw 357: Versatile Li-ion Charger And Boost Module For a Wide Range Of Applications

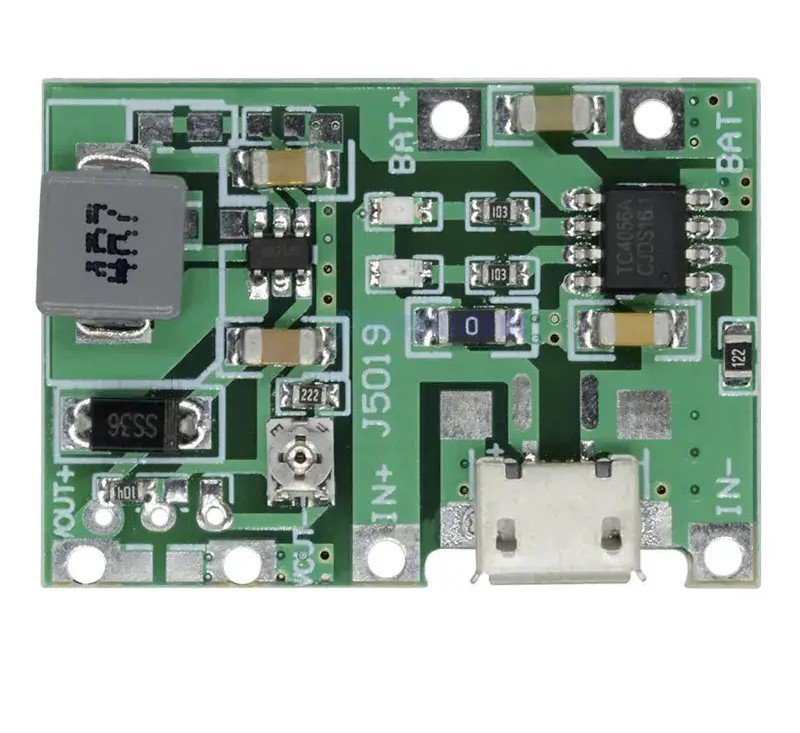

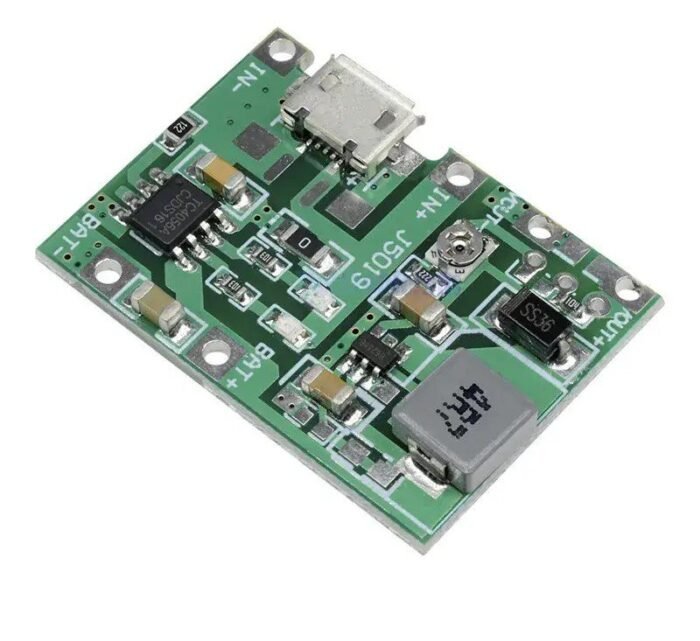

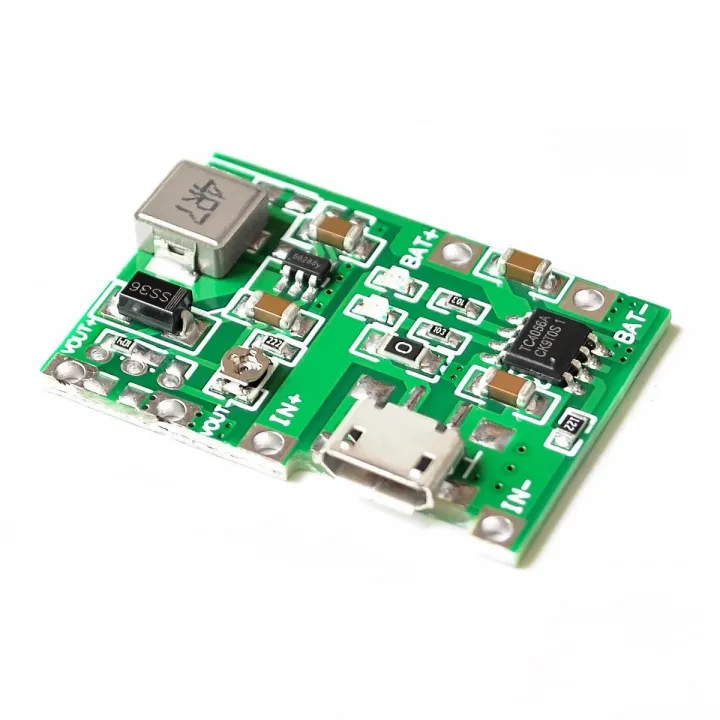

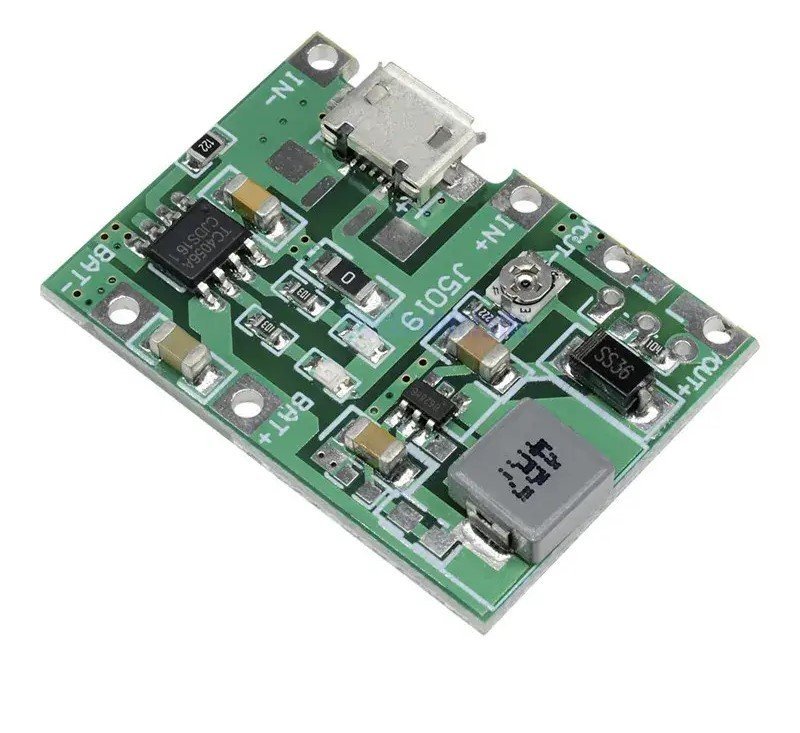

J5019 HW 357 Li-Ion Charger and Boost Module

Enhance your battery charging and power supply capabilities with the J5019 HW 357, a versatile Li-Ion charger and boost module designed for a wide range of applications. Combining the TP4056 Li-Ion battery charging circuit with the MT3608 boost converter, this compact and efficient module provides both seamless charging and voltage boosting solutions.

Key Features:

• Comprehensive Battery Charging: Effectively charges single-cell Li-Ion batteries, with adjustable charging current up to 2A for flexibility.

• Powerful Boost Converter: Boosts the voltage from a 3.7V Li-Ion battery to an adjustable output of up to 28V, making it suitable for powering small devices, driving LEDs, and more.

• Compact and Efficient Design: Small size and high efficiency make it perfect for portable applications where space and power consumption are crucial.

• Wide Applications: Ideal for charging single-cell Li-Ion batteries, powering small devices, and various other electronics projects.

Specifications:

• Input Voltage: 4.5V to 8V DC

• Output Voltage: 4.3V to 27V DC (continuously adjustable)

• Charging Voltage: 4.2V DC (for Li-Ion battery charging)

• Charging Current: Maximum 1A

• Discharging Current: Maximum 2A

• Size: 3.3×2.3cm (1.3×0.91 inches)

Applications:

• Battery Charging: Suitable for charging single-cell Li-Ion batteries.

• Power Supply: Can be used for powering small devices such as LEDs, sensors, and microcontrollers.

• Portable Electronics: Ideal for portable or battery-powered applications where efficient power conversion is needed.

Order Your J5019 HW 357 Today:

Take your projects to the next level with the J5019 HW 357 Li-Ion charger and boost module. Order now from Digilog.pk, your trusted source for high-quality electronics and accessories in Pakistan.
