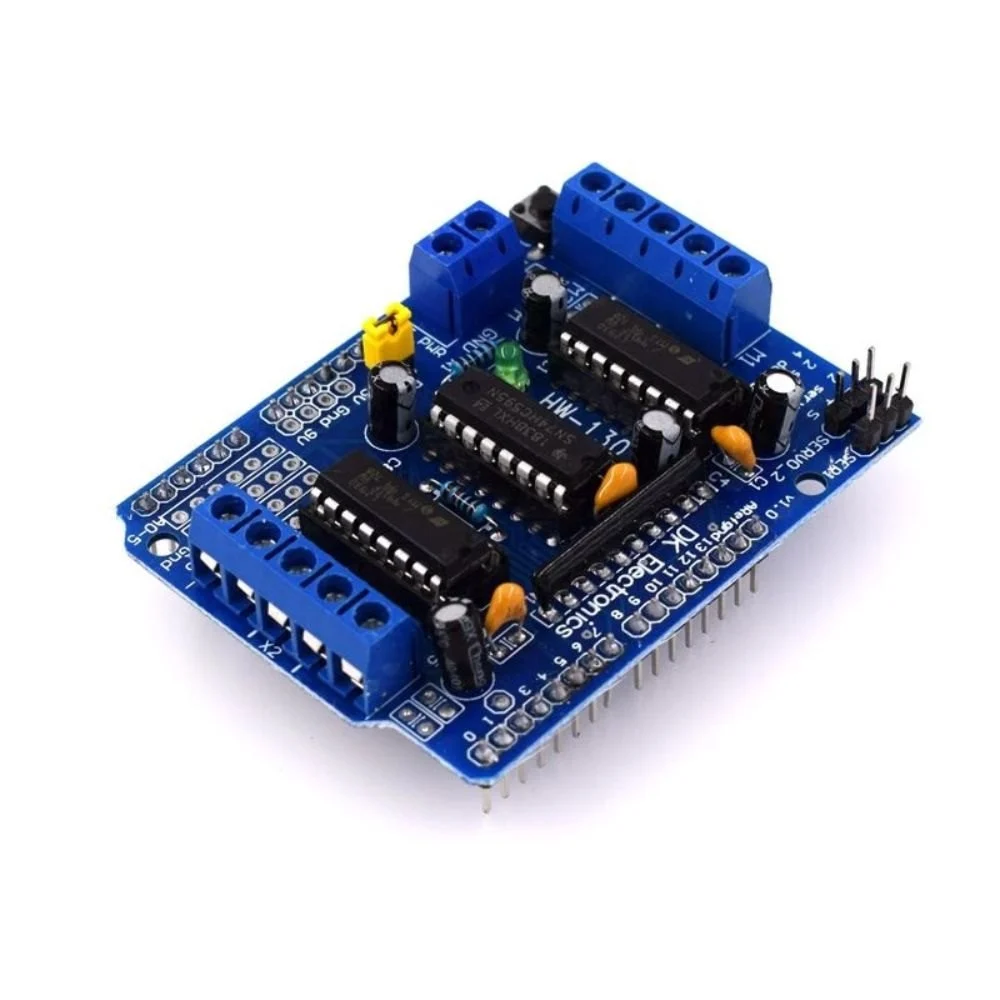

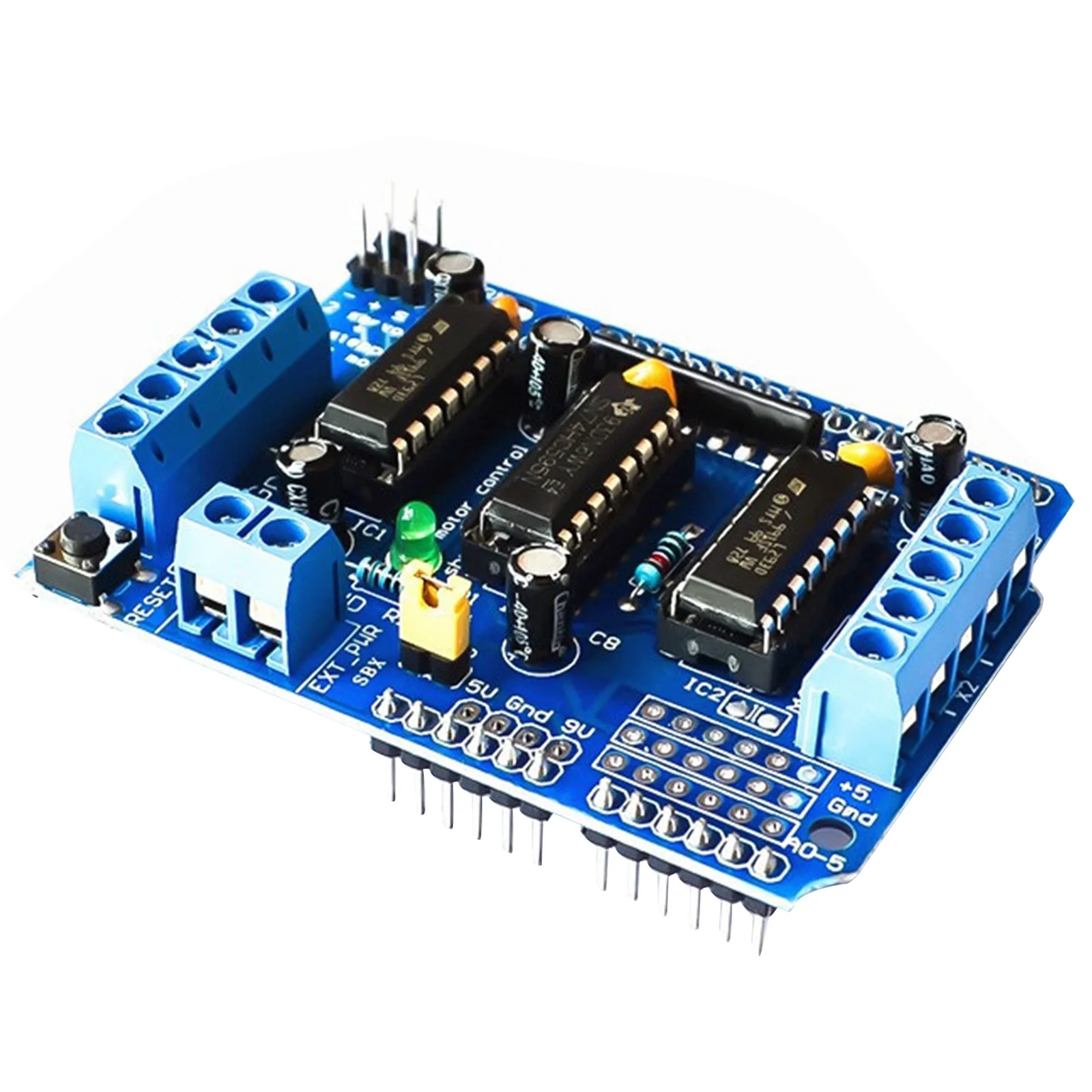

L293D Motor Driver Shield for Arduino – Control DC Motors, Stepper Motors, and Servos with Ease

Unlock the full potential of your robotics and motorized projects with the L293D Motor Driver Shield for Arduino. This versatile motor control shield is designed to drive a wide range of motors, including DC motors, stepper motors, and servos, making it perfect for robotic platforms, automation, and more. Whether you’re building a two-wheeled robot, automated machinery, or computer-controlled sculptures, the L293D Motor Driver Shield gives you the control you need for smooth, precise motor operation.

Key Features:

Dual-Channel H-Bridge Motor Driver: Includes two L293D motor drivers, allowing you to control up to four DC motors or two stepper motors simultaneously.
Motor Speed and Direction Control: Fine-tune motor rotation with full control over speed and direction, enabling precise movement for your projects.
Wide Voltage Range: Capable of running motors from 4.5VDC to 25VDC to suit various motor types and project requirements.
Powerful Current Handling: Each H-Bridge can deliver 0.6A per bridge with a 1.2A peak, ensuring reliable motor control with thermal shutdown and internal kickback protection.
Servo Motor Control: Includes connections for 5V hobby servos, offering an easy integration with Arduino’s high-resolution dedicated timer (after soldering pins).
Bi-Directional Motor Control: Capable of controlling up to 4 bi-directional DC motors with individual 8-bit speed control for fine adjustments (approximately 0.5% resolution).
Step Mode Support: Supports up to 2 stepper motors (unipolar or bipolar), including single coil, double coil, or interleaved stepping configurations.
External Power Supply: Features a 2-pin terminal block and jumper to connect an external power supply, ensuring separate logic and motor power for maximum stability.
Easy Connections: Big terminal block connectors (for 18-26 AWG wires) simplify motor wiring, making it easier to set up and use.
Arduino Compatibility: Tested and compatible with Arduino Mega 1280 & 2560, Diecimila, Duemilanove, and UNO, along with an easy-to-use Arduino software library and example code to get you started quickly.
Why Choose the L293D Motor Driver Shield for Arduino? This shield is perfect for anyone looking to control multiple motors with precision and ease. Whether you’re a hobbyist or a professional, this motor driver provides simple integration with your Arduino, reliable performance, and the flexibility to handle different motor types.

Applications:

Robotics: Control multiple motors simultaneously for two-wheeled robots, robotic arms, and more.
Automation: Use it in automated systems, such as conveyor belts, robotic vehicles, or CNC machines.
IoT Projects: Ideal for IoT applications requiring motor control for smart devices.
Prototyping: Perfect for quickly prototyping motor-based projects with Arduino.
Specifications:

Motor Driver: L293D (dual H-bridge)
Motor Control: 4 bi-directional DC motors, 2 stepper motors
Motor Voltage Range: 4.5VDC to 25VDC
Current Per Bridge: 0.6A (1.2A peak)
Servo Support: 5V hobby servos with high-resolution timer control
Compatibility: Arduino Mega 1280 & 2560, Diecimila, Duemilanove, UNO
External Power Support: Separate motor/logic power supply via terminal block
Package Includes:

1x L293D Motor Driver Shield for Arduino
With the L293D Motor Driver Shield, you can easily integrate motor control into your Arduino-based projects. It’s the perfect solution for driving DC motors, stepper motors, and servos with precision. Get started today and take your robotics, automation, and IoT projects to the next level!
