Ne555 Timer Switch Adjustable Module Time Delay Relay Module Dc 12v

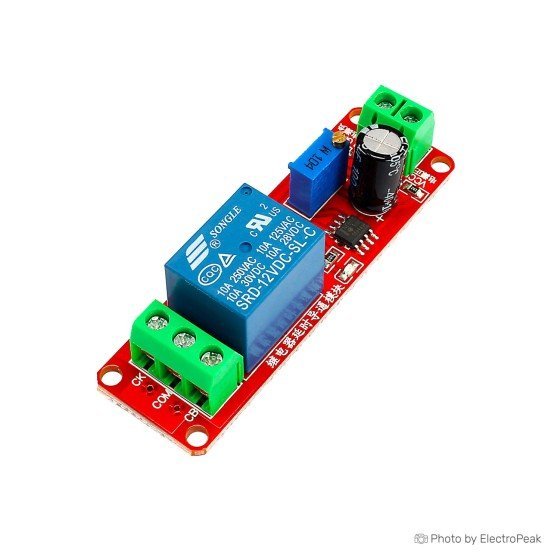

NE555 Timer Switch Adjustable Delay Relay Module – DC 12V

Take control of timing in your electronic circuits with the NE555 Timer Switch Adjustable Module. This versatile delay relay module is perfect for applications requiring a timed output, such as lights, motors, solenoids, and other devices. Powered by the popular NE555 timer IC, this module delivers adjustable delay functionality with simple potentiometer control.

✅ Key Features:

• NE555 Timer-Based Design: Reliable timing control using the industry-standard NE555 chip.

• Adjustable Delay: Fine-tune your timing with an adjustable range from 0 to 10 seconds.

• High Load Capacity: Supports loads up to 10A at 250V AC or 30V DC, making it suitable for various high-power devices.

• Wide Application: Ideal for automation systems, DIY electronics, smart devices, and more.

• Easy Integration: Compact design with clearly labeled terminals for quick setup.

📐 Specifications:

• Chipset: NE555

• Input Voltage: DC 12V (5V version available)

• Delay Time Range: 0 – 10 seconds (adjustable via onboard potentiometer)

• Relay Output Capacity:

  • AC: 0~250V / Max. 10A

  • DC: 0~30V / Max. 10A

• Maximum Load Power: 2200W

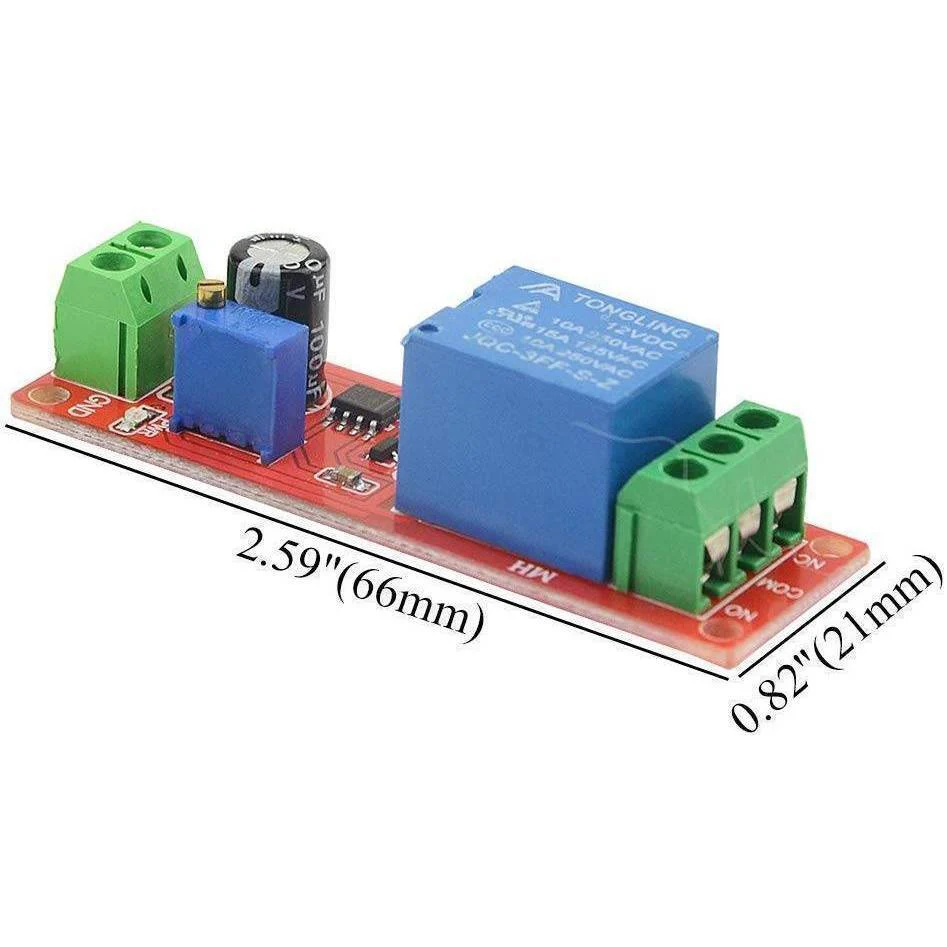

• Module Dimensions: 68mm x 22mm x 18mm

• Net Weight: 34g

📦 Package Includes:

• 1 x NE555 Timer Switch Adjustable Delay Relay Module (DC 12V)

🛒 Order Now:

Get the best deal on the NE555 Delay Timer Module in Pakistan — ideal for hobbyists, engineers, and industrial applications. Available in major cities like Lahore, Karachi, Islamabad, Faisalabad, and across the country.
