STM Sinewave Inverter Drive Module Pin to pin replacement for dsPIC30F2010
₨ 2,000.00

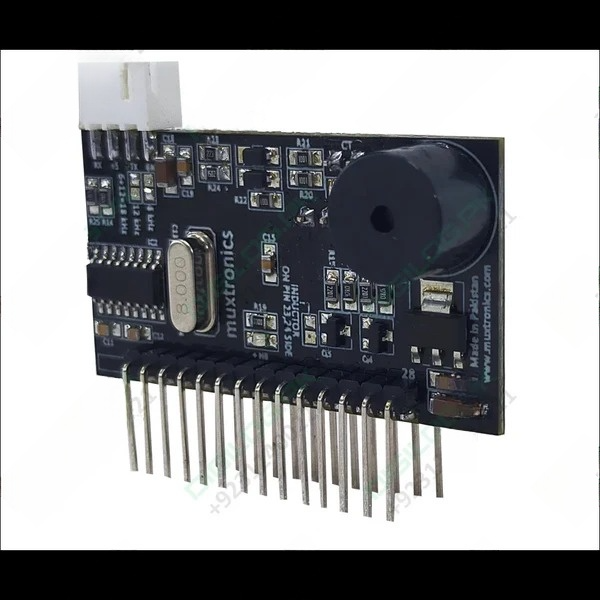

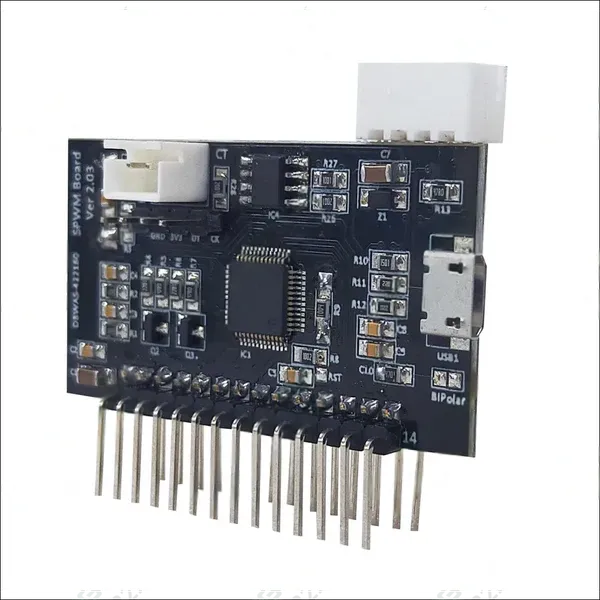

STM Sinewave Inverter Drive Module
High-Efficiency Sinusoidal Pulse Width Modulation Board
This high-performance SPWM board is designed for precision and efficiency and is suitable for various electronic applications.
98 in stock
Description
STM Sinewave Inverter Drive Module
High-Efficiency Sinusoidal Pulse Width Modulation Board
This high-performance SPWM board is designed for precision and efficiency and is suitable for various electronic applications.
Specifications
| Feature | Details |
|---|---|
| Operating Voltage | 5V DC |
| Carrier Frequency | 6 kHz, 12 kHz and 18 kHz (User-selectable) |
| Output Frequency | 50Hz (Fixed) |
| Dimensions | 51mm x 22mm |
| Operating Temperature | 0°C to 55°C |
| Operating Modes | Modified Unipolar/Bipolar (User-selectable) |
| Audible Warnings | Integrated DC buzzer |
| Communication Ports | 1 x USART (RS232-C), 1 x USB (VCOM 2.0) |
| PWM Output | 3.3V, 20 mA (Max) |
Display Compatibility
| Display Options | Description |
|---|---|
| 16×2 LCD Module | Compact and easy-to-read display |
| 20×4 LCD Module | Larger screen for more information |
| HT1621 LCD Module | Low-power, versatile display |
| i-Mux TFT Display | Advanced graphical interface |
