78l05 Smd Voltage Regulator In Pakistan
₨ 15.00
The LM78L05 is part of the LM78LXX series of fixed three-terminal positive voltage regulators, offering a regulated 5V output with up to 100mA current capability. It’s a compact and reliable solution for on-board voltage regulation in a variety of electronics, from logic systems and instrumentation to HiFi and embedded systems.
LM78L05 5V Voltage Regulator IC – 100mA Output (SOT-89 Package)
The LM78L05 is part of the LM78LXX series of fixed three-terminal positive voltage regulators, offering a regulated 5V output with up to 100mA current capability. It’s a compact and reliable solution for on-board voltage regulation in a variety of electronics, from logic systems and instrumentation to HiFi and embedded systems.
This IC is an ideal replacement for traditional Zener diode/resistor combinations, offering improved performance with much lower quiescent current and enhanced output impedance.
Key Features:
-
Fixed 5V Output
-
Input Voltage Range: 7V to 20V
-
Maximum Output Current: 100mA
-
Dropout Voltage: 1.7V typical
-
Internal Thermal Overload Protection
-
Short-Circuit Current Limiting
-
Safe Area Protection for Output Transistors
-
Output Voltage Tolerance: ±5% over temperature
-
No External Components Required
-
Package Type: Compact SOT-89
Technical Specifications:
| Parameter | Value |
|---|---|
| Output Voltage | 5.0V |
| Input Voltage Range | 7.0V to 20V |
| Max Output Current | 100mA |
| Dropout Voltage | ~1.7V |
| Adjustable Output | No |
| On/Off Switch | No |
| Low Dropout (LDO) | No |
| Package | SOT-89 |
| Application Type | Fixed Regulator |
Applications:
-
Local on-card regulation
-
Embedded systems and microcontrollers
-
Logic level power supply
-
Audio systems (HiFi equipment)
-
Instrumentation circuits
-
General low-power regulated power supply
Package Includes:
-
1 x LM78L05 Voltage Regulator IC (SOT-89)
Buy LM78L05 IC in Pakistan
Available online for fast delivery in Karachi, Lahore, Islamabad, Rawalpindi, Multan, Faisalabad, Quetta, Peshawar, and all across Pakistan.
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Atmel Attiny85 (Attiny-85 / Attiny85-20pu) – High-Performance Microcontroller for Compact Embedded Solutions
Bd139 Npn Transistor In Pakistan

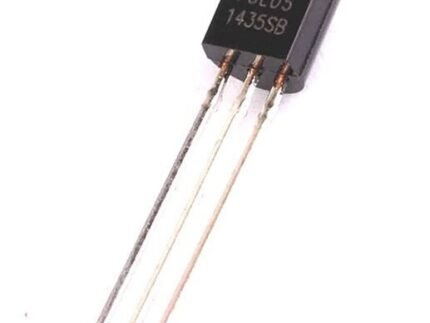

Lm78l05 78l05 Voltage Regulator 5v Voltage Regulator To-92
